Description: Header
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section

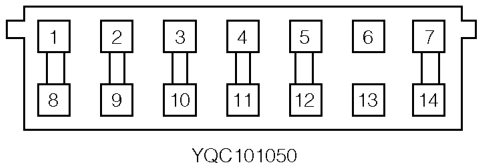

- C0288 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col BW | Cct ALL |
| 2 | WY | ALL |
| 3 | GP | ALL |
| 4 | GP | ALL |
| 5 | UY | 40 |
| 6 | UY | 40 |
| 7 | K | 4 |
| 8 | BW | ALL |
| 9 | BW | 4 |
| 10 | GP | 4 |
| 12 | UY | 40 |
| 13 | K | 4 |
| 14 | K | 4 |
Description: Header

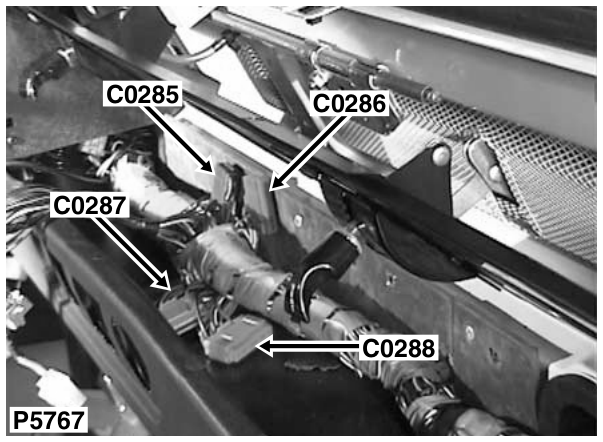

Location: Behind centre of fascia
Colour: BLUE Gender: Female
