Description: Header
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0289 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col B | Cct 26 |
| 2 | B | 3 |
| 3 | B | 22 |
| 4 | B | 6 |
| 5 | B | 40 |
| 6 | B | 3 |
| 7 | B | 3 |
| 8 | B | 26 |
| 9 | OW | 21 |
| 10 | OW | 21 |
| 11 | B | 21 |
| 13 | B | 3 |
| 14 | B | 3 |
| 15 | B | 32 |
| 16 | B | 3 |
| 17 | B | 3 |
| 18 | B | 3 |
| 20 | B | 3 |

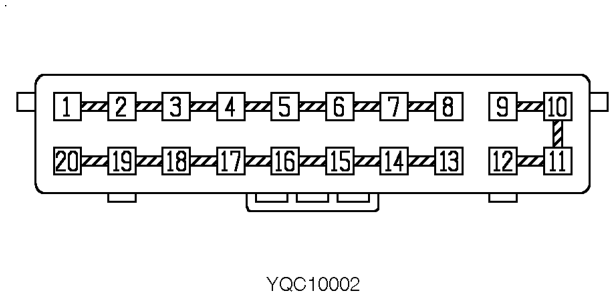

Description: Header

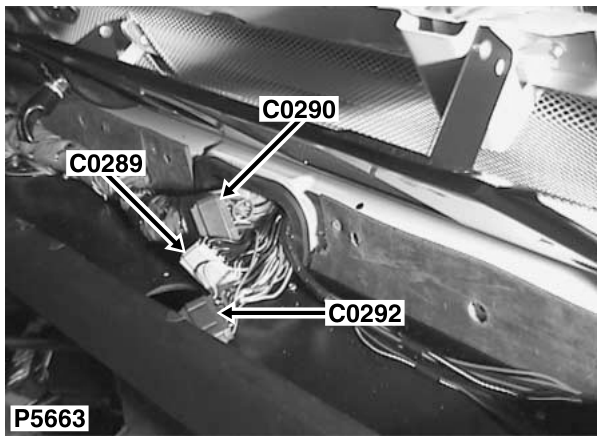

Location: Behind centre of fascia
Colour: GREY Gender: Female
