Description: Header
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0290 Header › Description: Header

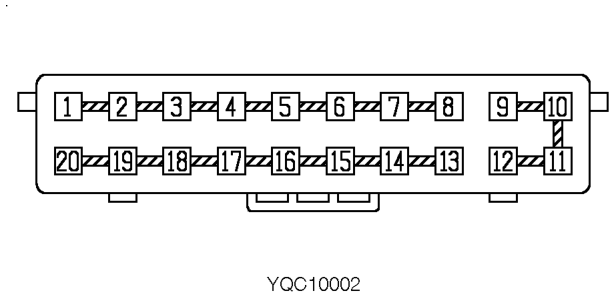

ConnectorsDescription: Header
| Cav 1 | Col RO | Cct 3 |
| 2 | RO | 29 |
| 3 | RO | 29 |
| 4 | RO | 3 |
| 5 | RO | 22 |
| 6 | RO | 40 |
| 7 | RO | 40 |
| 8 | RO | 3 |
| 9 | B | 3 |
| 10 | B | 3 |
| 11 | B | 21 |
| 12 | B | 3 |
| 13 | RO | 3 |
| 16 | RO | 3 |
| 17 | RO | 40 |
| 18 | RO | 40 |
Description: Header

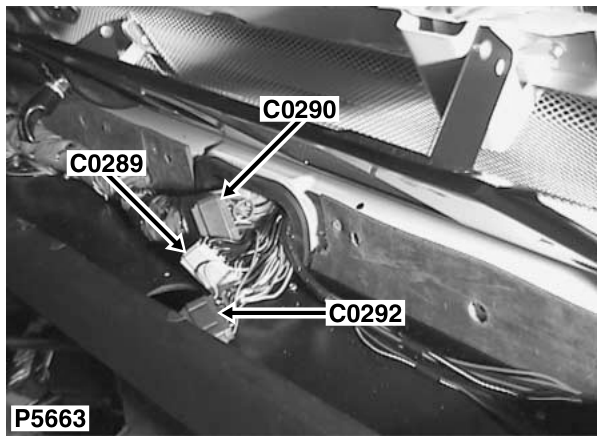

Location: Behind centre of fascia
Colour: GREY Gender: Female
