Description: Header
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0292 Header › Description: Header
ConnectorsDescription: Header
| Cav 1 | Col GR | Cct 3 |
| 2 | GR | 3 |
| 3 | GR | 3 |
| 4 | GR | 3 |
| 5 | GR | 21 |
| 6 | GR | 3 |
| 11 | B | 3 |
| 13 | B | 3 |
| 14 | B | 3 |
| 15 | GW | 3 |
| 16 | GW | 3 |
| 17 | GW | 3 |
| 18 | GW | 3 |
| 19 | GW | 21 |
| 20 | GW | 3 |

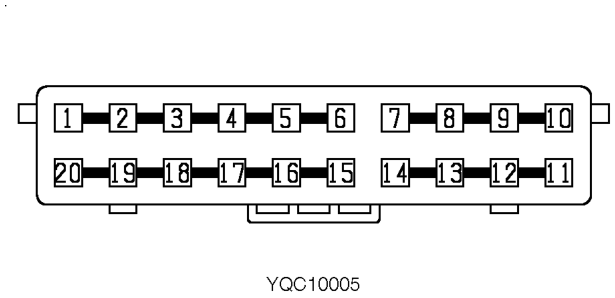

Description: Header

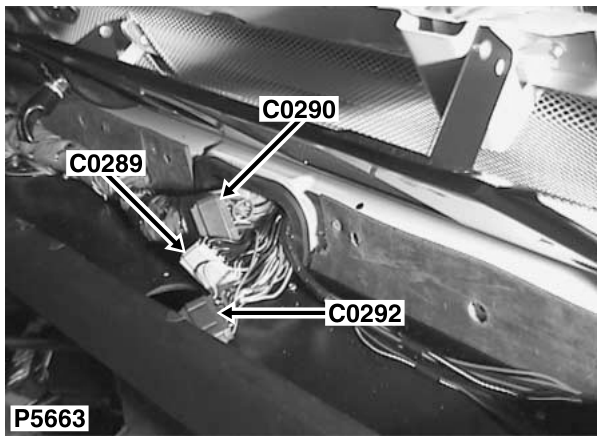

Location: Behind centre of fascia
Colour: BLUE Gender: Female
