Description: Header
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0294 Header › Description: Header

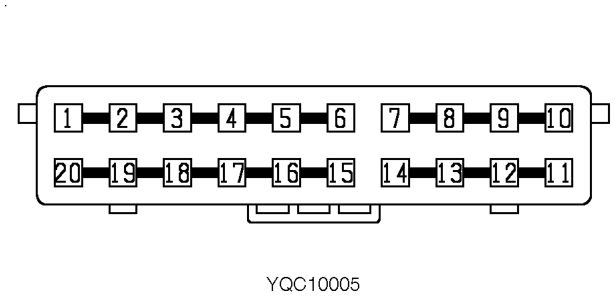

ConnectorsDescription: Header
| Cav 1 | Col B | Cct ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | 25 |
| 6 | B | 25 |
| 7 | KP | ALL |
| 8 | KP | ALL |
| 9 | KP | 4 |
| 15 | NO | ALL |
| 16 | NO | 46 |
| 17 | NO | ALL |
| 18 | NO | ALL |
| 19 | NO | 25 |
| 20 | NO | 25 |
Description: Header

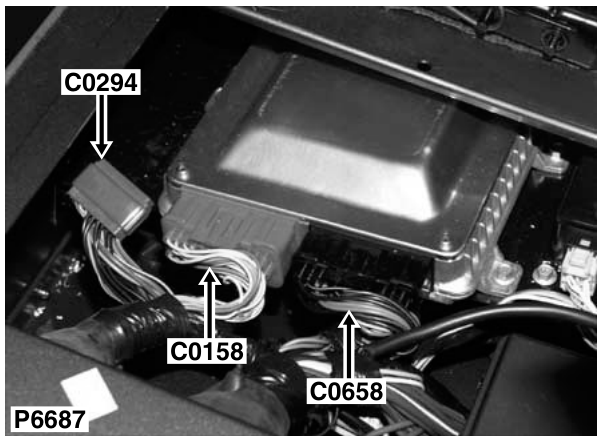

Location: Beneath RH seat
Colour: BLUE Gender: Female
