Description: Header

Make

Land Rover

Model

Defender Electrical Library

Year

2002 on

Section

C0295 Header › Description: Header

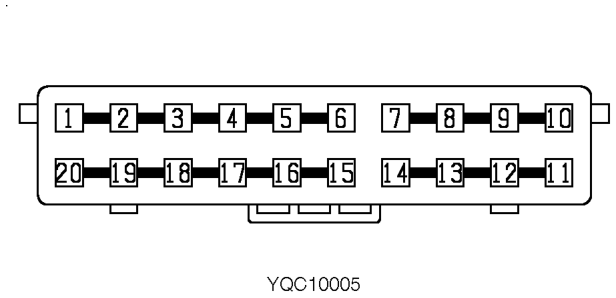

ConnectorsDescription: Header

Cav 1	Col GR	Cct 2
2	GR	2
3	GR	2
4	GR	2
5	GR	20
6	GR	2
11	B	2
12	B	2
13	B	2
14	B	2
15	GW	2
16	GW	2
17	GW	2
18	GW	2
19	GW	20
20	GW	2

Description: Header

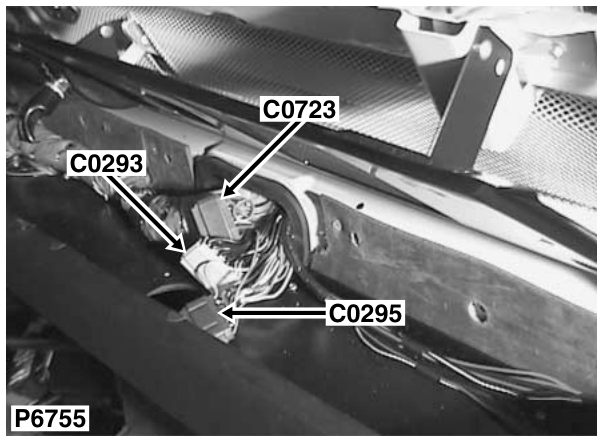

Location: Behind centre of fascia

Colour: BLUE Gender: Female

05 General
