Description: Header
- Make
- Land Rover
- Model
- Defender Electrical Library
- Year
- 2002 on
- Section
- C0296 Header › Description: Header

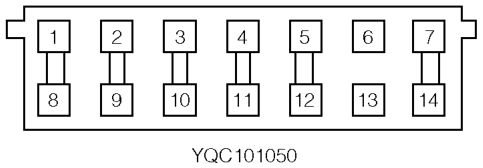

ConnectorsDescription: Header
| Cav 1 | Col B | Cct 26 |
| 2 | B | 26 |
| 3 | RO | ALL |
| 4 | RO | 26 |
| 7 | PN | ALL |
| 8 | B | 26 |
| 9 | B | 26 |
| 10 | RO | ALL |
| 11 | RO | ALL |
| 13 | PN | 19 |
| 14 | PN | 21 |
Description: Header

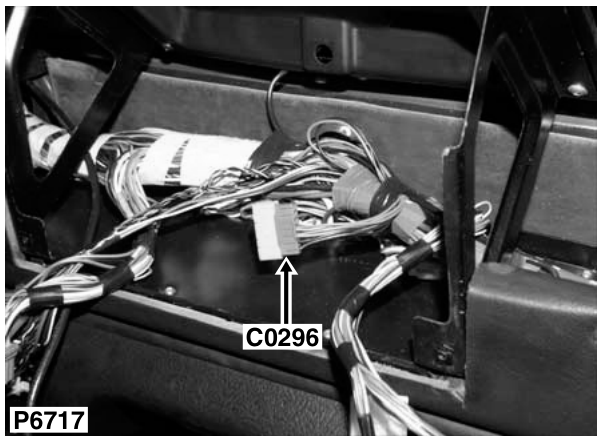

Location: Behind centre of fascia
Colour: BLUE Gender: Female
