Description: Header

Make

Land Rover

Model

Defender Electrical Library

Year

2002 on

Section

C0723 Header › Description: Header

ConnectorsDescription: Header

Cav 1	Col RO	Cct 2
2	RO	28
3	RO	28
4	RO	2
6	RO	40
7	RO	40
8	RO	2
9	B	2
10	B	2
11	B	20
12	B	2
13	RO	2
16	RO	2
17	RO	40
18	RO	40

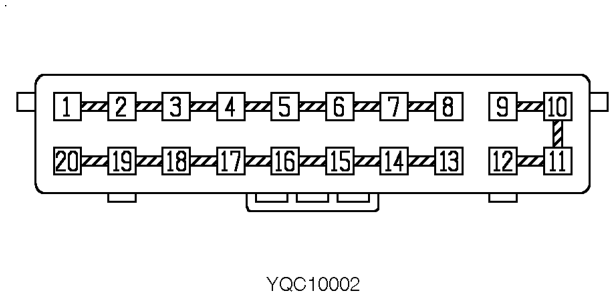

Description: Header

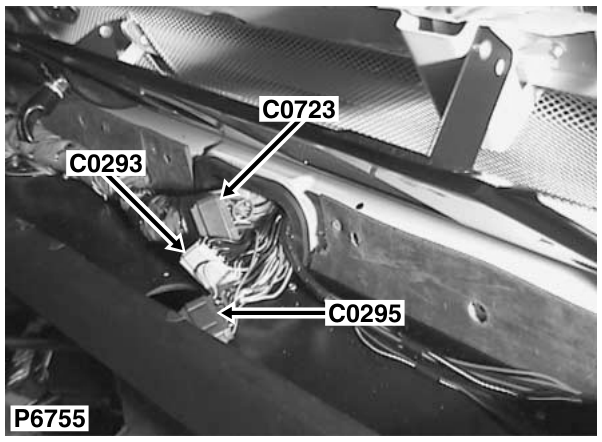

Location: Behind centre of fascia

Colour: GREY Gender: Female
