Switch - Horn
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C036 › Switch - Horn
ConnectorsSwitch - Horn
Switch - Horn
Female
NATURAL

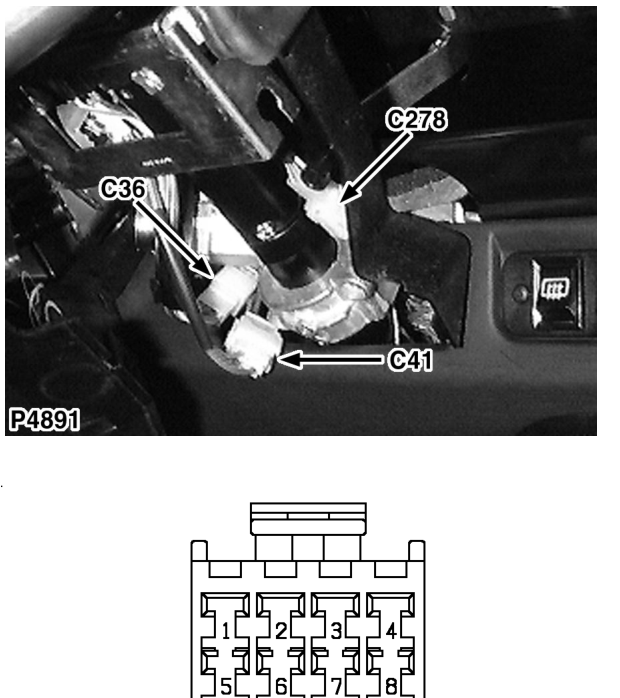

Behind steering column cowl LH side
| Cav | Col | CCT |
|---|---|---|
| 1 | U | ALL |
| 2 | GW | ALL |
| 3 | LGN | ALL |
| 4 | GR | ALL |
| 5 | UW | ALL |
| 6 | UR | ALL |
| 7 | P | ALL |
| 8 | PB | ALL |
