Resistor - In-line
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C037 › Resistor - In-line
ConnectorsResistor - In-line
Resistor - In-line
Female
BRASS

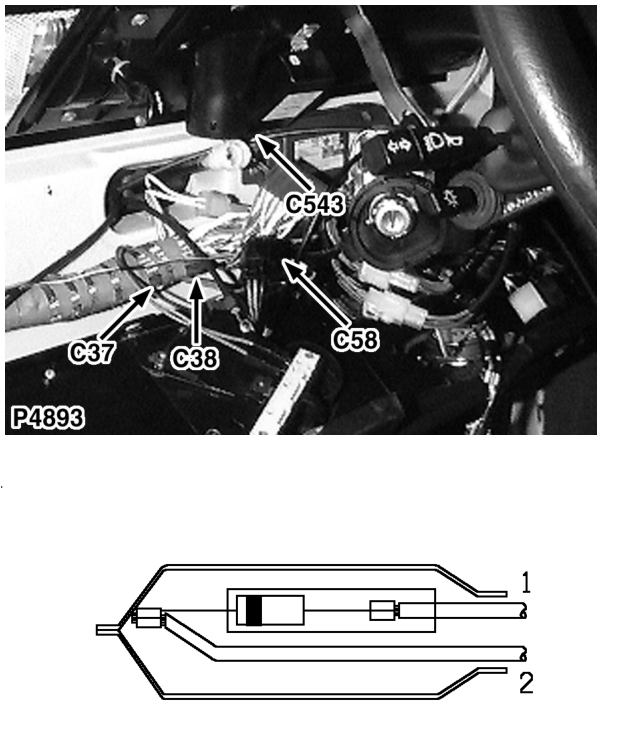

Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | W | 1 |
| 1 | NLG | 5 |
| 1 | W | 14 |
| 1 | WB | 15 |
| 2 | YN | 20 |
