Switch - Lighting
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C041 › Switch - Lighting
ConnectorsSwitch - Lighting
Switch - Lighting
Female
NATURAL

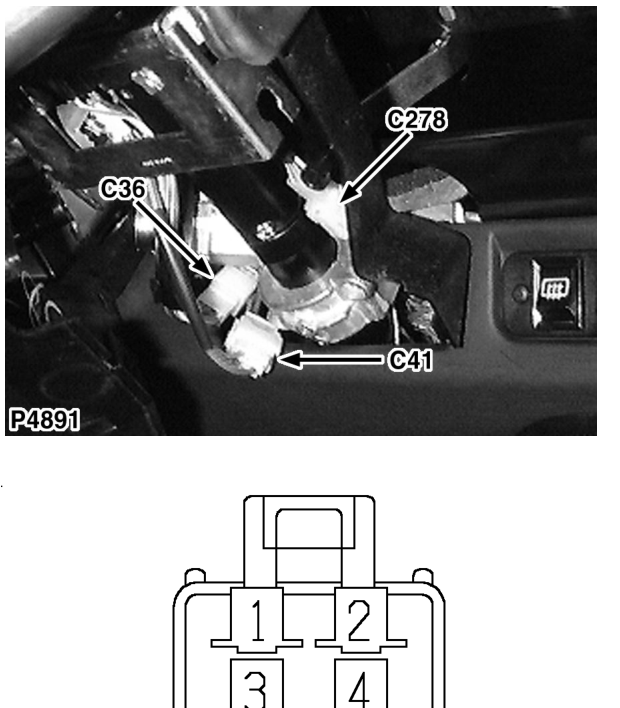

Behind steering column cowl LH side
| Cav | Col | CCT |
|---|---|---|
| 1 | N | ALL |
| 2 | R | ALL |
| 4 | U | ALL |
