Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C044 › Female
ConnectorsFemale

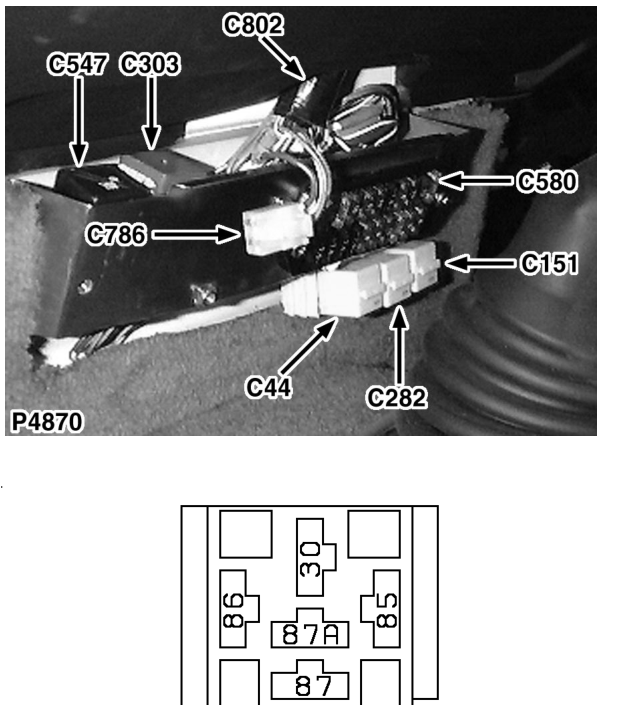

Relay - Heated rear screen
Female
YELLOW
Behind passenger compartment fusebox cover
| Cav | Col | CCT |
|---|---|---|
| 30 | NW | ALL |
| 85 | WG | ALL |
| 86 | B | ALL |
| 87 | N | ALL |
