Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C048 › Female
ConnectorsFemale

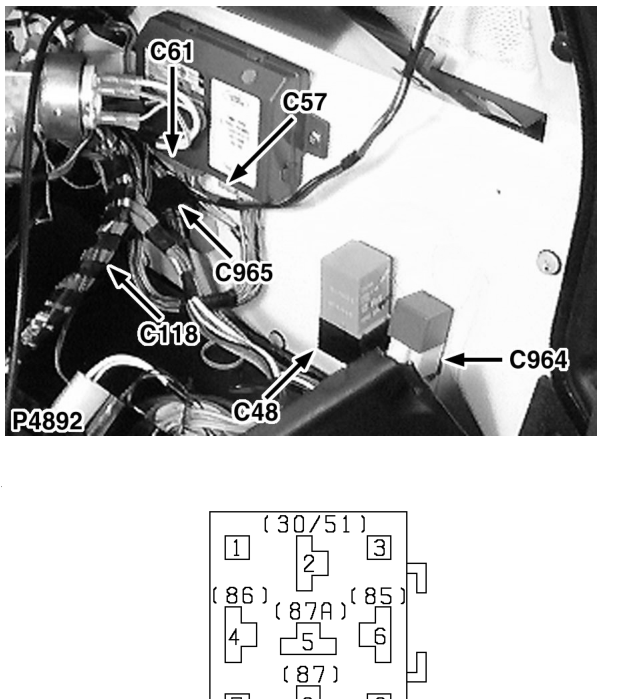

Relay - Dim dip
Female
BLACK
Behind RH side of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | W | ALL |
| 2 | UR | ALL |
| 4 | NG | ALL |
| 5 | U | ALL |
| 6 | B | ALL |
| 7 | RO | ALL |
| 8 | UR | ALL |
