C187 (page 2 of 2)
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C187
ConnectorsC187 · page 2 of 2

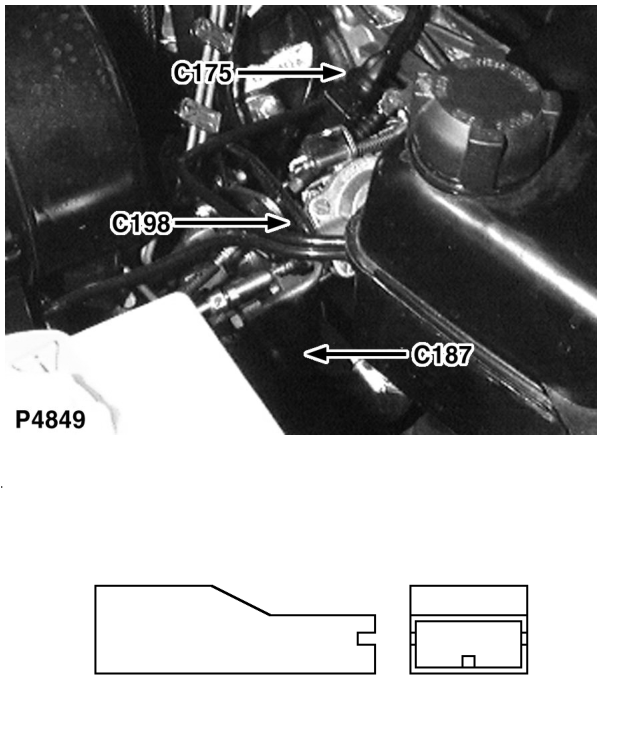

Switch - Oil pressure
300 TDi Female NATURAL
Bottom of engine - RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | WN | 2 |
