Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C189 › Female
ConnectorsFemale

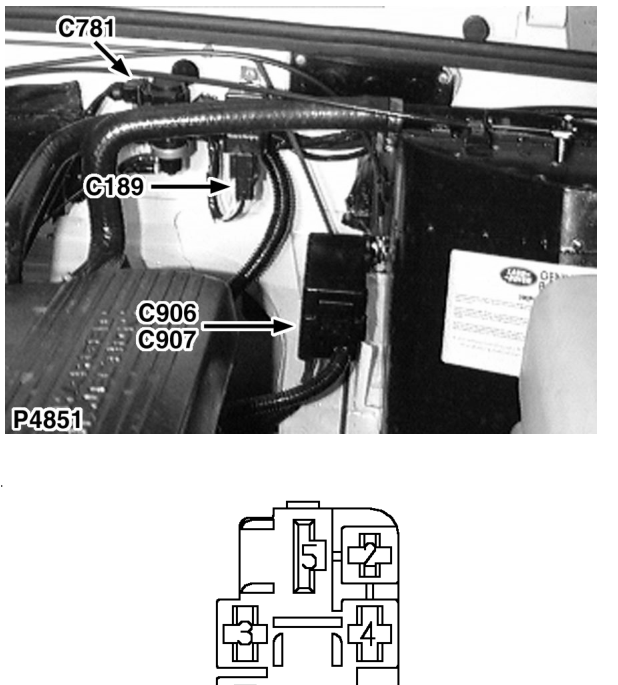

Unit - Timer - Glow plug
Female
BLACK
LH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | WR | ALL |
| 2 | YB | ALL |
| 3 | W | ALL |
| 4 | B | ALL |
| 5 | N | ALL |
| 6 | BY | ALL |
