Male
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C223 › Male
ConnectorsMale

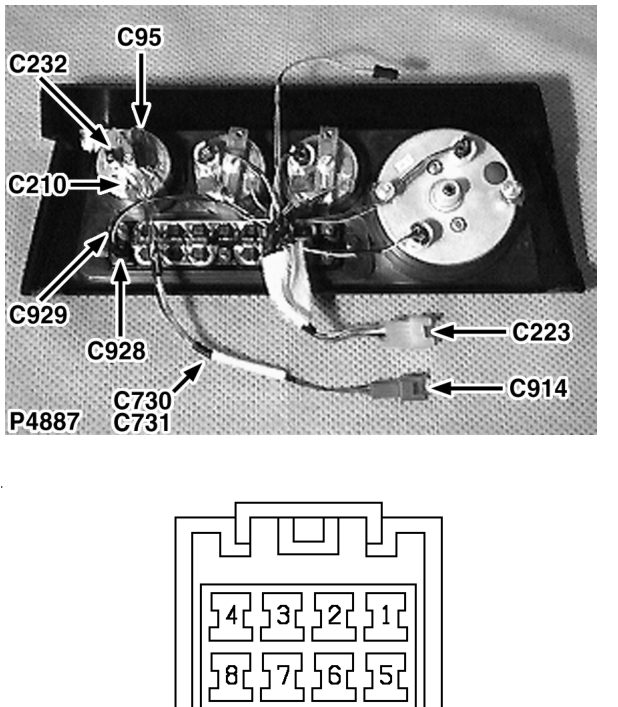

Main harness to instrument pack harness
Male
NATURAL
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | GU | ALL |
| 2 | WB | ALL |
| 3 | B | ALL |
| 4 | G | ALL |
| 5 | RW | ALL |
| 7 | GB | ALL |
| 8 | P | ALL |
