Instrument Pack
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C230 › Instrument Pack
ConnectorsInstrument Pack
Instrument Pack
Female
NATURAL

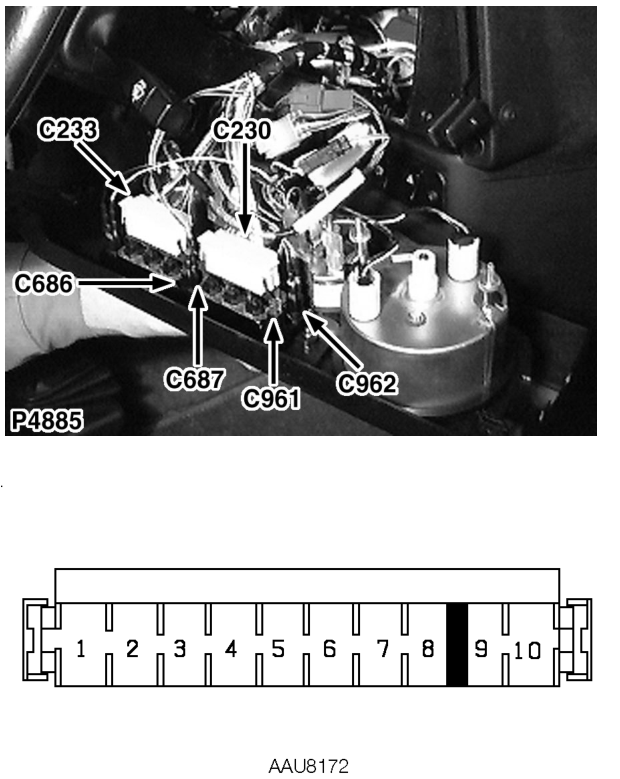

Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 3 | WN | ALL |
| 4 | W | 1 |
| 4 | W | 2 |
| 4 | WB | 15 |
| 4 | W | 20 |
| 5 | YN | ALL |
| 6 | BW | ALL |
| 8 | WY | ALL |
| 9 | GW | ALL |
| 10 | GR | ALL |
