Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section

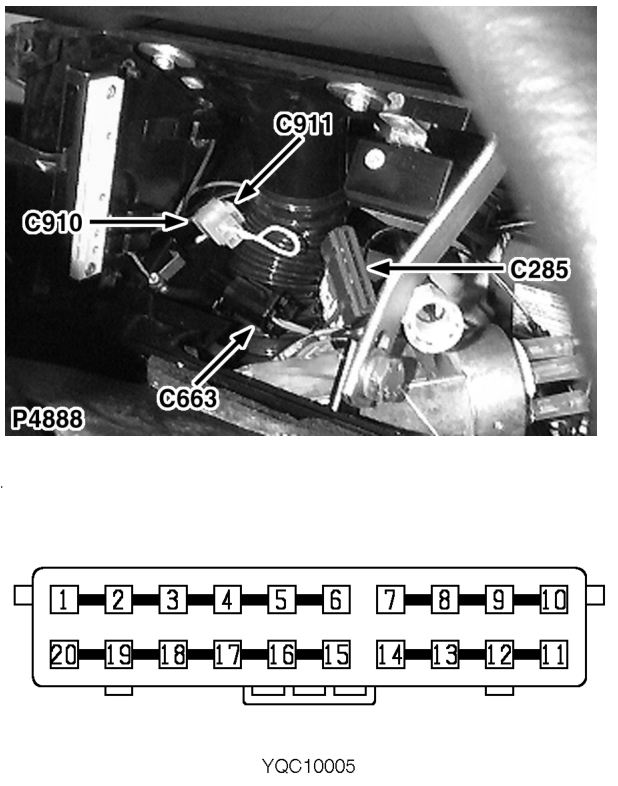

- C285 › Female
ConnectorsFemale
Header joint
Female
BLUE
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | G | ALL |
| 2 | G | ALL |
| 3 | G | ALL |
| 4 | G | ALL |
| 5 | G | ALL |
| 7 | P | ALL |
| 8 | P | ALL |
| 9 | P | ALL |
| 10 | P | ALL |
| 11 | W | ALL |
| Cav | Col | CCT |
|---|---|---|
| 12 | W | ALL |
| 13 | W | ALL |
| 14 | W | ALL |
| 15 | W | ALL |
| 16 | W | ALL |
| 17 | W | ALL |
| 18 | W | ALL |
| 19 | W | ALL |
| 20 | W | ALL |
