Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C287 › Female
ConnectorsFemale
Header joint
Female
BLUE

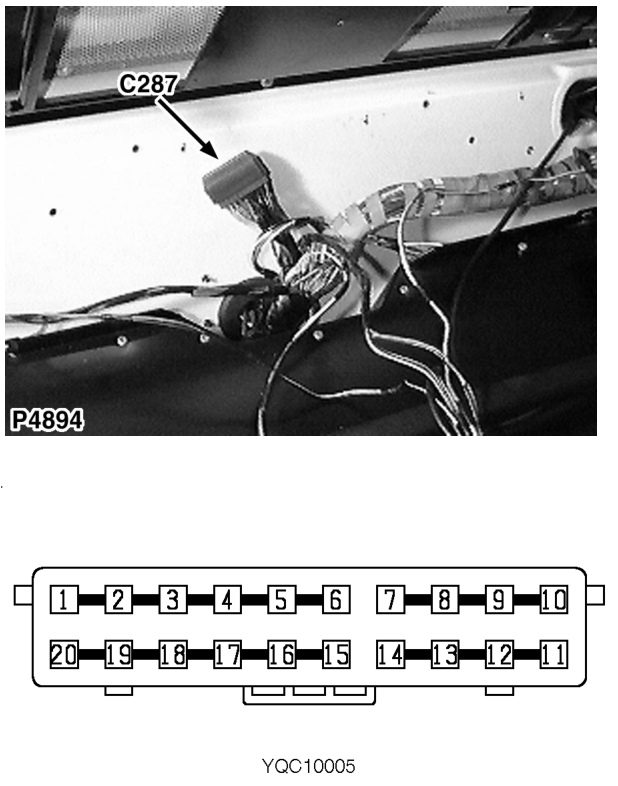

Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | B | 20 |
| 2 | B | 20 |
| 3 | B | 20 |
| 4 | B | 20 |
| 5 | B | 20 |
| 6 | B | 20 |
| 7 | GW | 20 |
| 8 | GW | 20 |
| 9 | GW | 20 |
| 10 | GW | 20 |
| Cav | Col | CCT |
|---|---|---|
| 11 | GR | 20 |
| 12 | GR | 20 |
| 13 | GR | 20 |
| 14 | GR | 20 |
| 15 | B | 20 |
| 16 | B | 20 |
| 17 | B | 20 |
| 18 | B | 20 |
| 19 | B | 20 |
| 20 | B | 20 |
