ECU - Delay - Windscreen
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C303 › ECU - Delay - Windscreen
ConnectorsECU - Delay - Windscreen
ECU - Delay - Windscreen
wiper
Female
BLACK

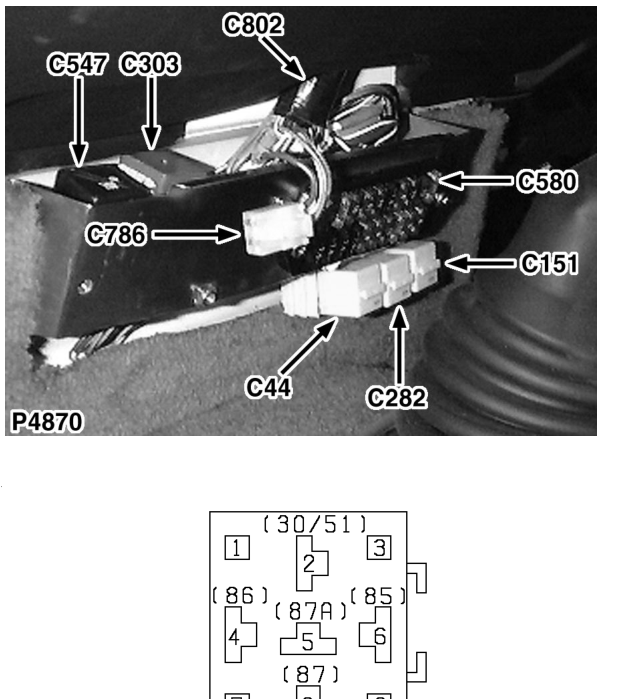

Behind passenger compartment fusebox cover
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | ALL |
| 2 | YLG | ALL |
| 4 | B | ALL |
| 5 | NLG | ALL |
| 6 | LGB | ALL |
| 8 | G | ALL |
