Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section

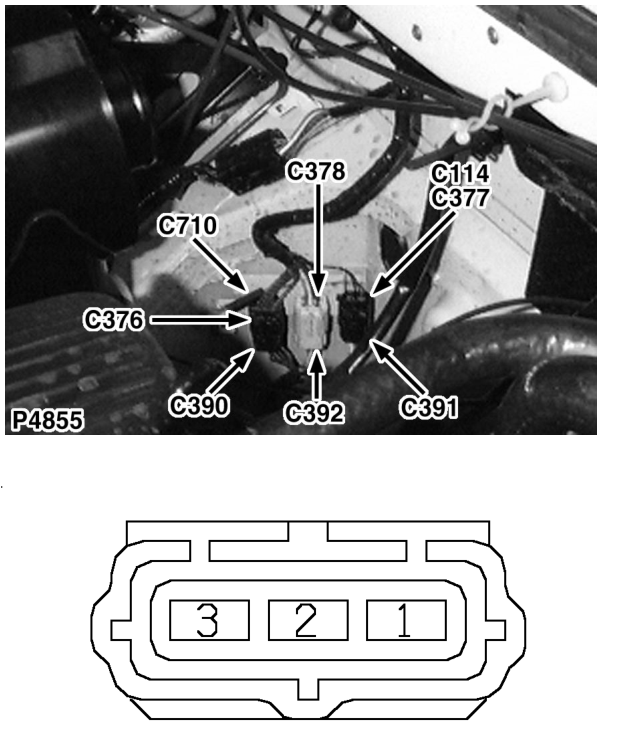

- C377 › Female
ConnectorsFemale
Main harness to chassis harness
Female
BLACK
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | GB | ALL |
| 2 | B | ALL |
| 3 | WP | 1 |
