Female
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C378 › Female
ConnectorsFemale

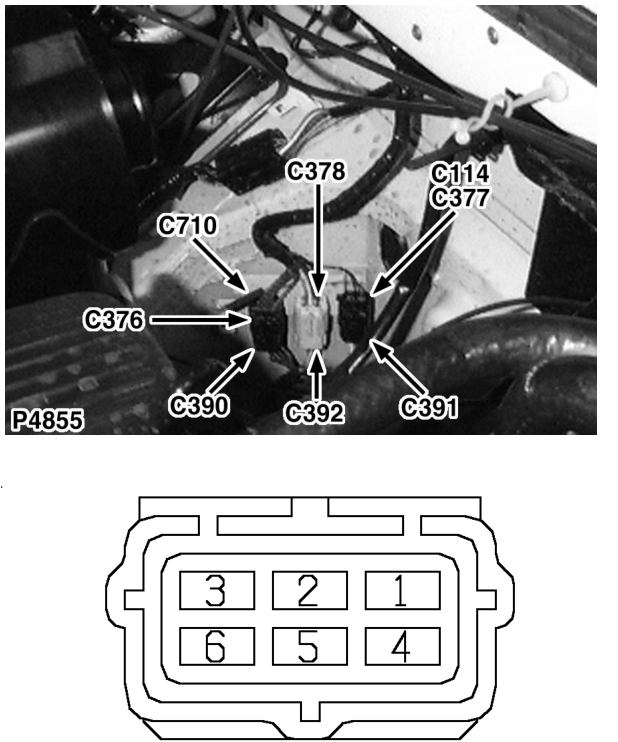

Main harness to chassis harness
Female
WHITE
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | GN | ALL |
| 2 | WB | ALL |
| 3 | G | ALL |
| 4 | NLG | ALL |
| 5 | RLG | ALL |
| 6 | P | ALL |
