Male
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section

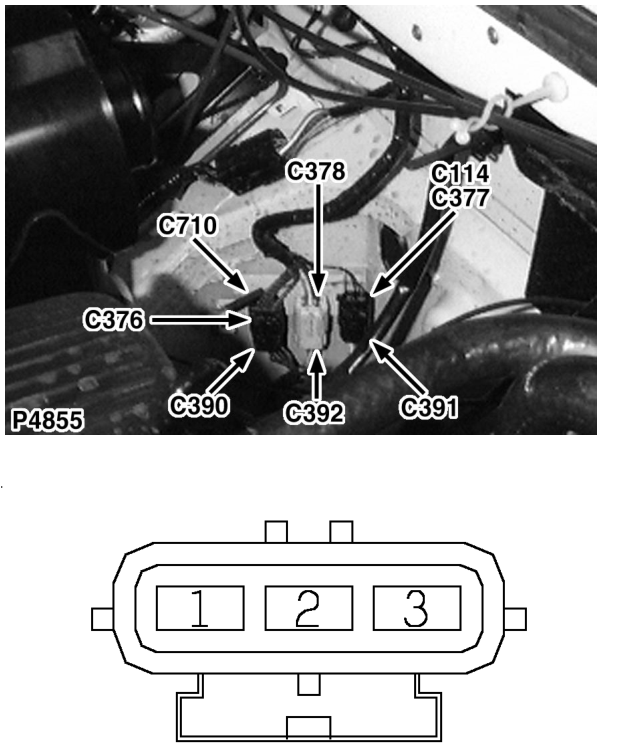

- C391 › Male
ConnectorsMale
Chassis harness to main harness
Male
BLACK
RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | GB | ALL |
| 3 | WP | ALL |
