Male
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C392 › Male
ConnectorsMale
Chassis harness to main harness
Male
WHITE

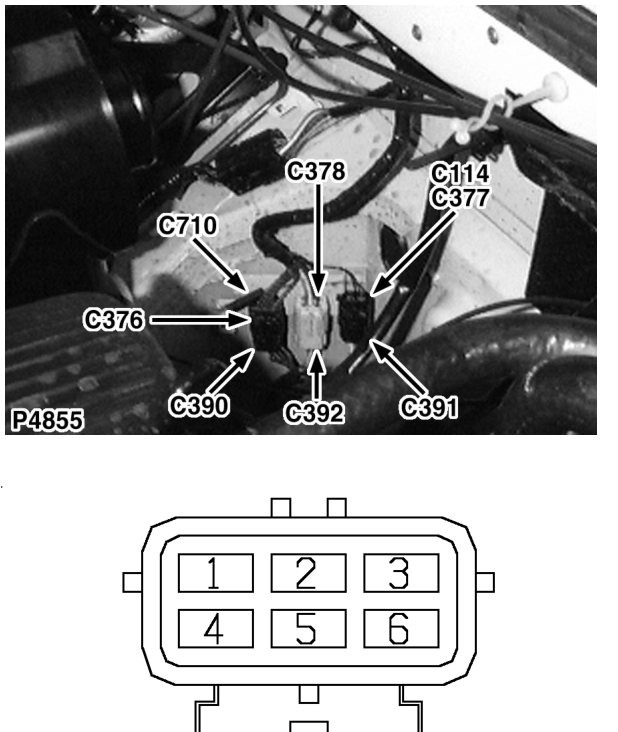

RH side of bulkhead
| Cav | Col | CCT |
|---|---|---|
| 1 | GN | ALL |
| 2 | WB | 18 |
| 3 | G | 18 |
| 4 | NLG | 18 |
| 5 | RLG | 18 |
| 6 | P | ALL |
