Motor - Blower - Front
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C846 › Motor - Blower - Front
ConnectorsMotor - Blower - Front
Motor - Blower - Front
Female
BLACK

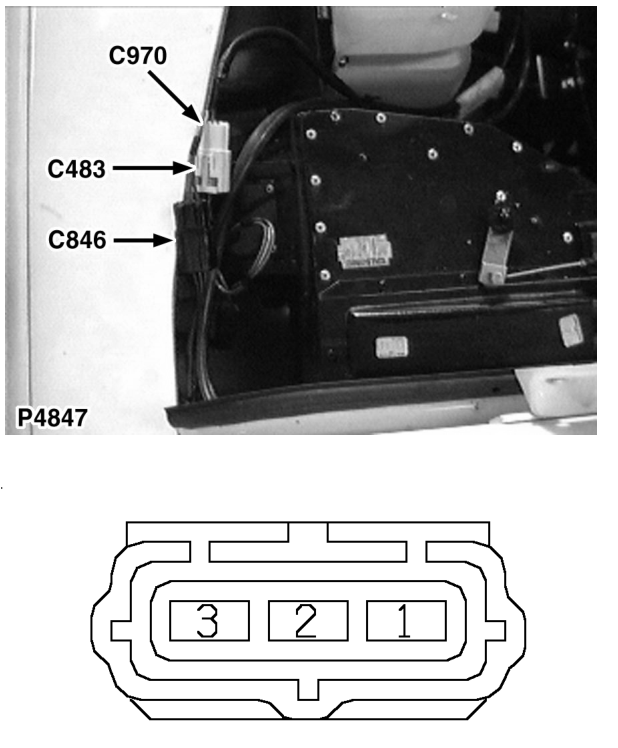

Rear LH side of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | GS | 1 |
| 1 | GS | 2 |
| 1 | N | 3 |
| 1 | GS | 20 |
| 2 | GY | ALL |
| 3 | PG | ALL |
