Switch - Clutch - Air
- Make
- Land Rover
- Model
- Defender 300Tdi Electrical Library
- Section
- C847 › Switch - Clutch - Air
ConnectorsSwitch - Clutch - Air

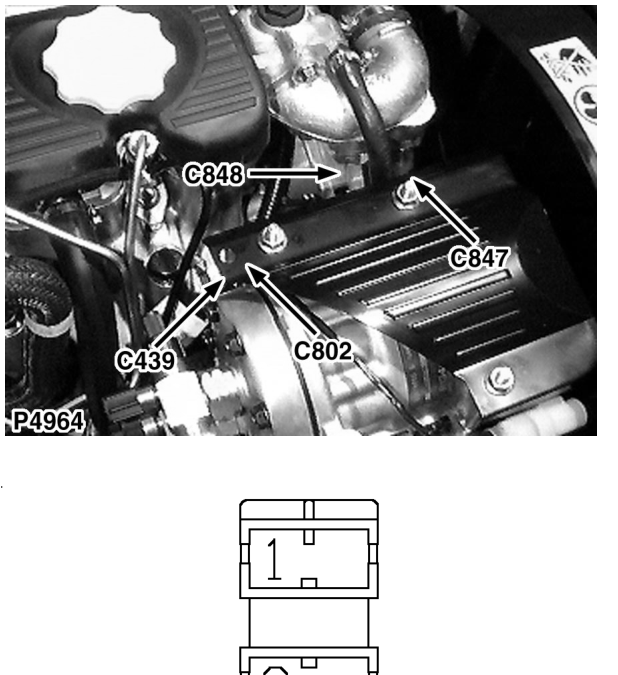

Switch - Clutch - Air
conditioning (A/C) GREEN
Front RH side of engine
| Cav | Col | CCT |
|---|---|---|
| 1 | WK | 3 |
| 2 | B | 3 |
