ECU - Alarm
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0061 › ECU - Alarm

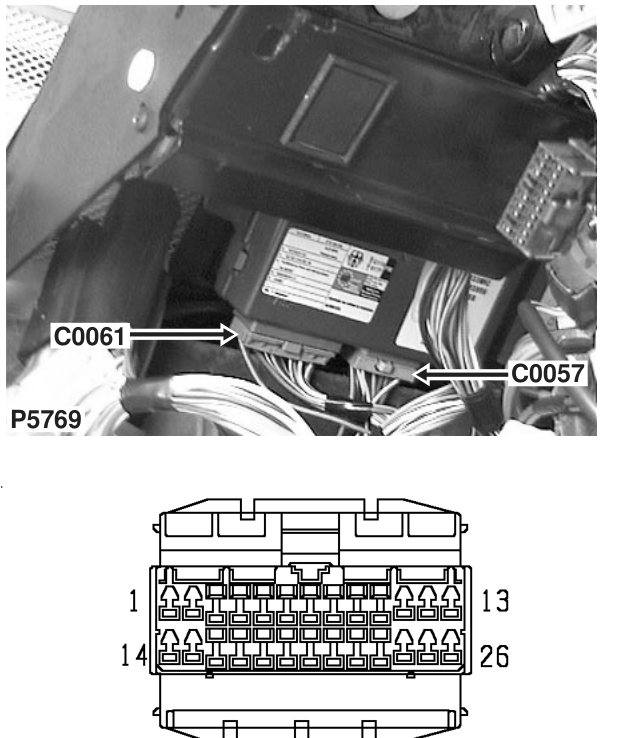

ConnectorsECU - Alarm
ECU - Alarm
Female
GREY
Behind instrument pack
| Cav | Col | CCT |
|---|---|---|
| 1 | PW | ALL |
| 3 | WB | ALL |
| 5 | SW | ALL |
| 9 | OU | ALL |
| 10 | WG | ALL |
| 14 | LGS | 21 |
| 16 | PU | ALL |
| 17 | OLG | ALL |
| 20 | BN | ALL |
| 25 | PN | ALL |
| 26 | OS | ALL |
