Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0063 › Female
ConnectorsFemale
Relay - main

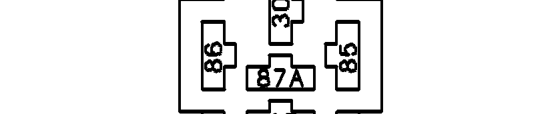

Female
YELLOW

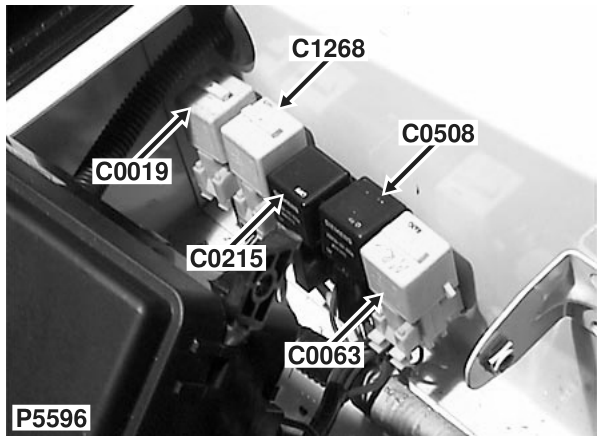

Beneath RH seat
| Cav | Col | CCT |
|---|---|---|
| 30 | NLG | 21 |
| 85 | N | 21 |
| 86 | UR | 21 |
| 87 | NO | 21 |
