Female

Make

Land Rover

Model

Defender Td5 Electrical Library

Year

1999

Section

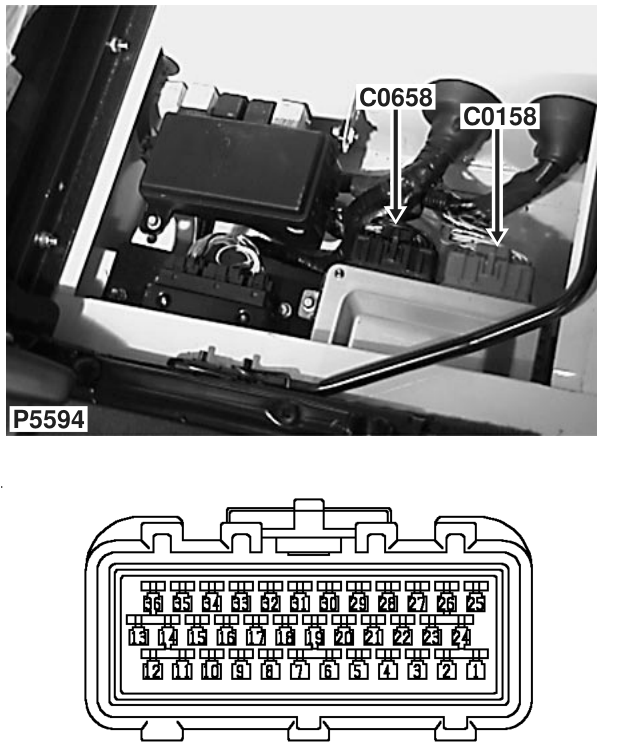

C0158 › Female

ConnectorsFemale

Engine control module (ECM) - Td5

Female

RED

Beneath RH seat

Cav	Col	CCT
1	YP	ALL
3	U	ALL
5	KB	ALL
6	WY	ALL
7	KG	ALL
8	KP	ALL
10	WY	ALL
11	SLG	ALL
13	KB	ALL
16	SCR	ALL
17	KB	ALL
18	KB	ALL
19	YW	ALL

Cav	Col	CCT
20	KB	ALL
22	NK	ALL
23	NO	ALL
24	YR	ALL
25	Y	ALL
26	YN	ALL
27	YU	ALL
29	GU	ALL
30	KB	ALL
33	WB	ALL
34	GB	ALL
36	WU	ALL
