Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0162 › Male
ConnectorsMale

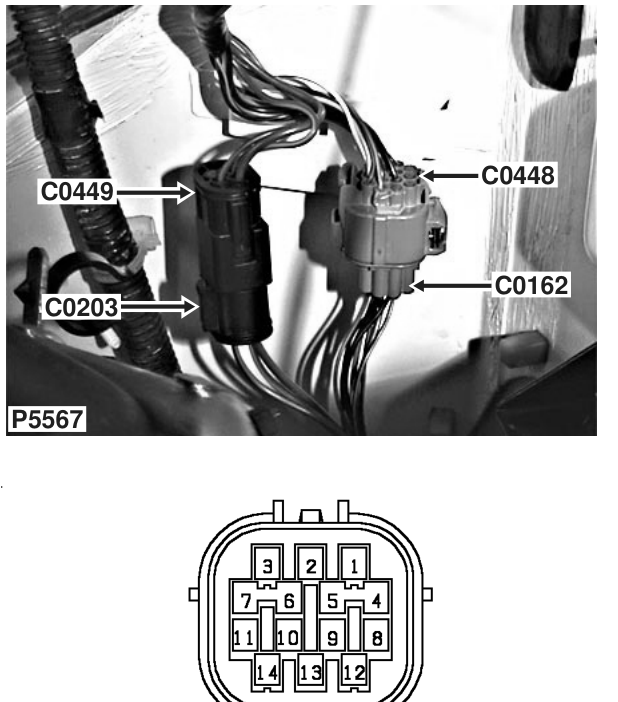

Main harness to engine harness - Td5
Male
GREY
Lower RH rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | WN | ALL |
| 2 | NY | ALL |
| 3 | BU | ALL |
| 4 | GN | ALL |
| 5 | GY | ALL |
| 6 | B | ALL |
| 8 | BS | 1 |
| 9 | BP | 1 |
| 10 | BR | ALL |
| 13 | WG | ALL |
| 14 | GU | ALL |
