Relay - Headlamp
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0282 › Relay - Headlamp
ConnectorsRelay - Headlamp
Relay - Headlamp

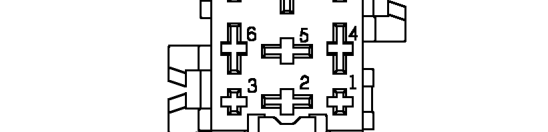

Female
BLACK

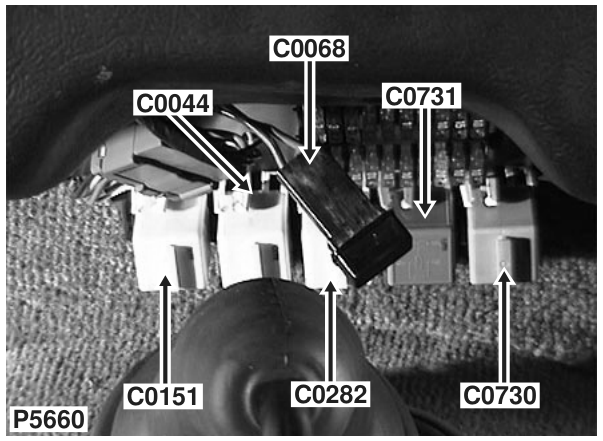

Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 2 | U | ALL |
| 4 | WG | ALL |
| 6 | B | ALL |
| 8 | U | ALL |
