Header

Make

Land Rover

Model

Defender Td5 Electrical Library

Year

1999

Section

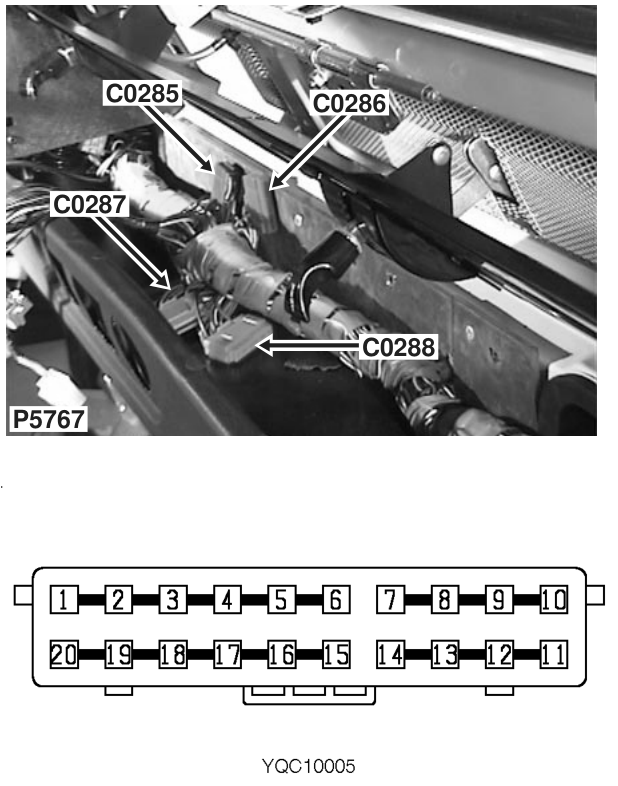

C0285 › Header

ConnectorsHeader

Header

Female

BLUE

Behind centre of fascia

Cav	Col	CCT
1	WG	ALL
2	WG	ALL
3	WG	ALL
4	WG	ALL
5	WG	ALL
6	WG	1
7	PB	ALL
8	PB	15
9	PB	ALL
10	PB	ALL

Cav	Col	CCT
11	WG	4
12	WG	ALL
13	WG	ALL
14	WG	ALL
15	WG	ALL
16	WG	ALL
17	WG	ALL
18	WG	22
19	WG	ALL
20	WG	ALL

05 General
