- C0286 › Header
ConnectorsHeader
Header
Female
ORANGE

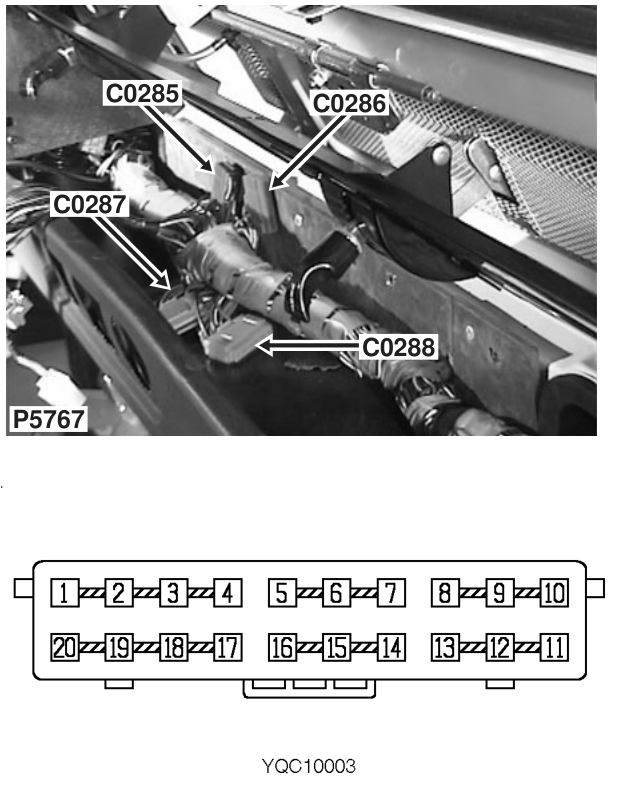

Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | ALL |
| 2 | WG | 15 |
| 3 | B | 15 |
| 5 | WY | ALL |
| 6 | WY | ALL |
| 7 | WY | ALL |
| 8 | GP | ALL |
| 9 | GP | ALL |
| 10 | GP | 21 |
| 11 | SR | ALL |
| Cav | Col | CCT |
|---|---|---|
| 12 | SR | ALL |
| 13 | SR | ALL |
| 14 | WB | ALL |
| 15 | WB | ALL |
| 16 | WB | ALL |
| 17 | B | ALL |
| 18 | B | ALL |
| 19 | B | ALL |
| 20 | B | 21 |
