Header

Make

Land Rover

Model

Defender Td5 Electrical Library

Year

1999

Section

C0287 › Header

ConnectorsHeader

Header

Female

BLUE

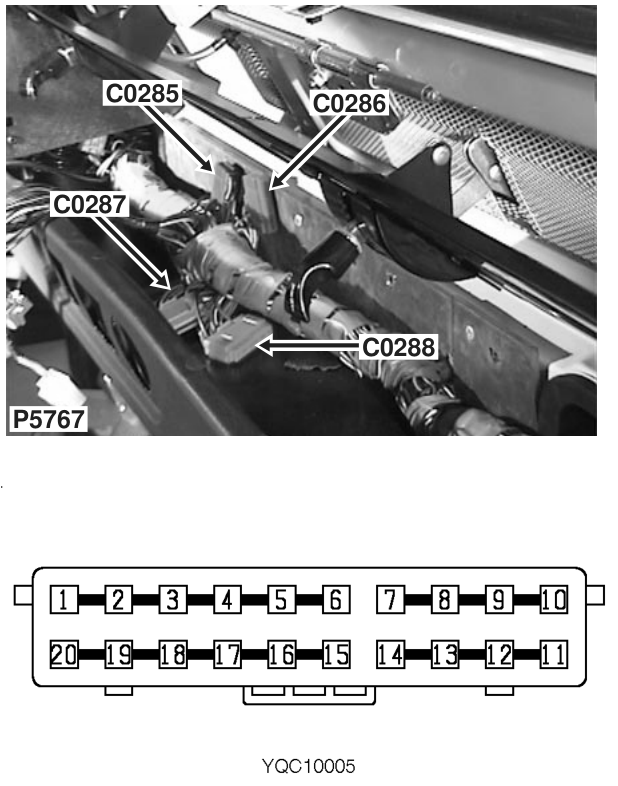

Behind centre of fascia

Cav	Col	CCT
1	B	ALL
2	B	ALL
3	B	ALL
4	B	ALL
5	B	ALL
6	B	27
7	LGB	ALL
8	LGB	ALL
9	LGB	ALL
11	PN	16
11	PN	17

Cav	Col	CCT
11	P	18
11	P	19
12	PN	ALL
13	PN	ALL
14	PN	ALL
15	NU	ALL
16	NU	ALL
17	NU	15
18	NU	15
19	NU	ALL
