Header

Make

Land Rover

Model

Defender Td5 Electrical Library

Year

1999

Section

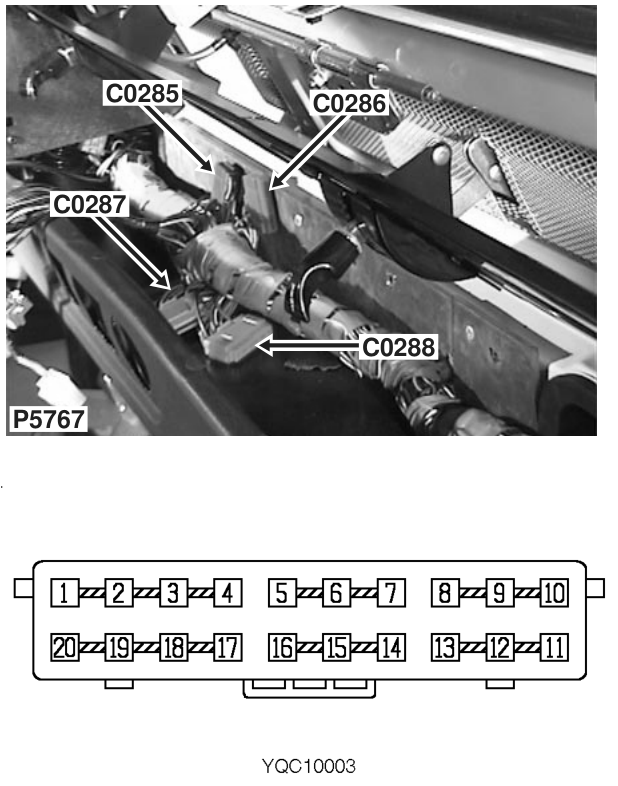

C0288 › Header

ConnectorsHeader

Header

Female

ORANGE

Behind centre of fascia

Cav	Col	CCT
1	BW	ALL
2	BW	ALL
3	BW	ALL
4	BW	12
5	RB	ALL
6	RB	ALL
7	RB	ALL
8	UY	27
9	UY	27
10	UY	27

Cav	Col	CCT
11	K	12
12	K	21
13	K	21
14	UW	ALL
15	UW	ALL
16	UW	ALL
17	U	ALL
18	U	ALL
19	U	ALL
20	U	25

05 General
