Header
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0289 › Header

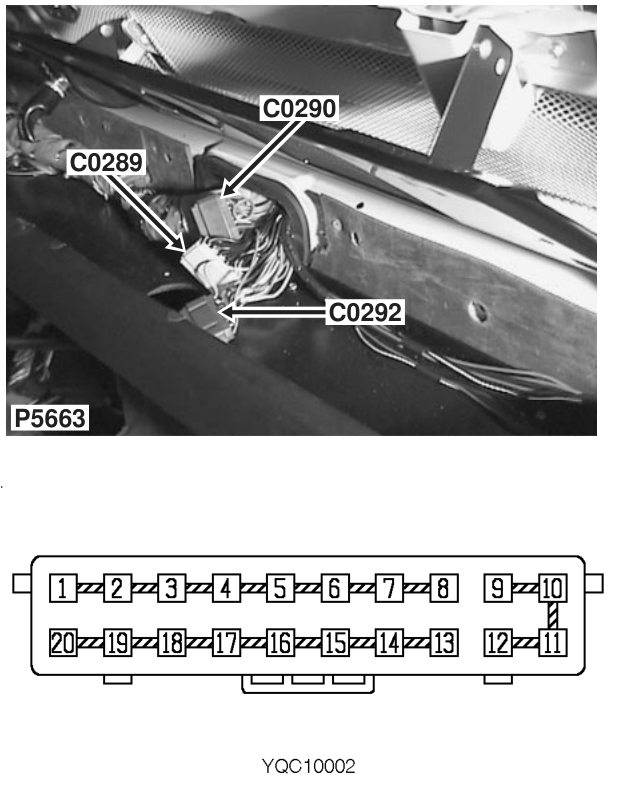

ConnectorsHeader
Header
Female
GREY
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | B | 4 |
| 2 | B | ALL |
| 3 | B | 25 |
| 4 | B | 12 |
| 6 | B | ALL |
| 7 | B | ALL |
| 8 | B | 28 |
| 9 | OW | ALL |
| 10 | OW | 15 |
| Cav | Col | CCT |
|---|---|---|
| 11 | B | 15 |
| 13 | B | ALL |
| 14 | B | ALL |
| 15 | B | ALL |
| 16 | B | ALL |
| 17 | B | ALL |
| 18 | B | ALL |
| 19 | B | ALL |
| 20 | B | ALL |
