Header
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section

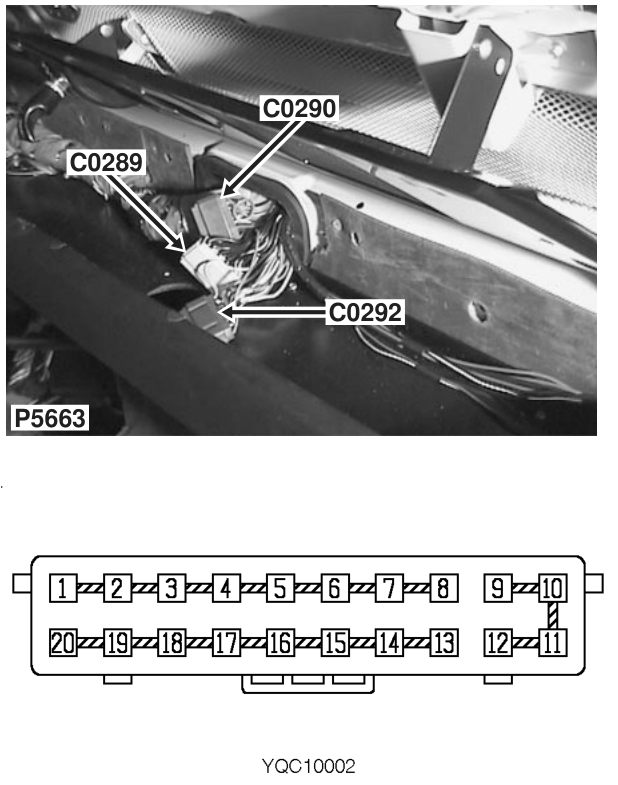

- C0290 › Header
ConnectorsHeader
Header
Female
GREY
Behind centre of fascia
| Cav | Col | CCT |
|---|---|---|
| 1 | RO | ALL |
| 2 | RO | ALL |
| 3 | RO | ALL |
| 4 | RO | ALL |
| 5 | RO | 25 |
| 6 | RO | 27 |
| 7 | RO | 27 |
| 8 | RO | ALL |
| 9 | B | ALL |
| Cav | Col | CCT |
|---|---|---|
| 10 | B | ALL |
| 11 | B | ALL |
| 12 | B | ALL |
| 13 | RO | ALL |
| 14 | RO | ALL |
| 15 | RO | ALL |
| 16 | RO | 1 |
| 17 | RO | 27 |
| 18 | RO | 27 |
