Header

Make

Land Rover

Model

Defender Td5 Electrical Library

Year

1999

Section

C0292 › Header

ConnectorsHeader

Header

Female

BLUE

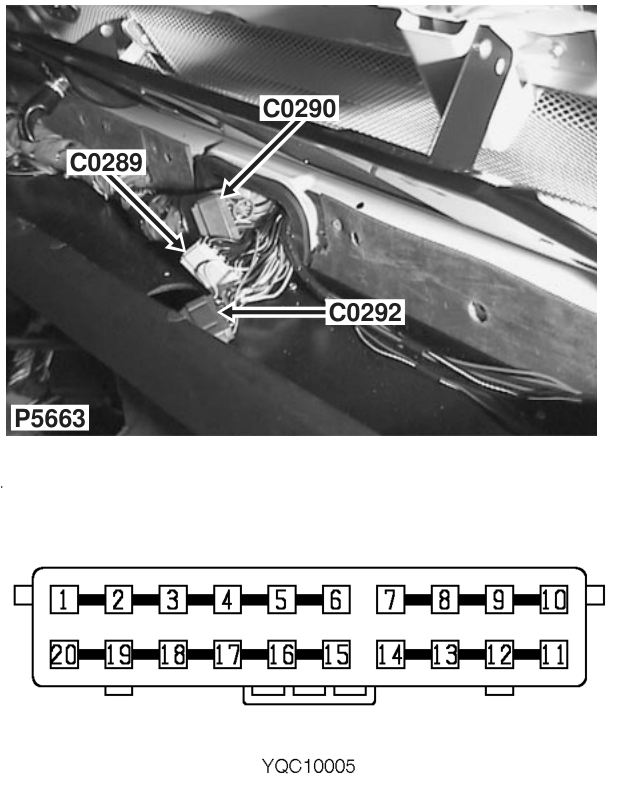

Behind centre of fascia

Cav	Col	CCT
1	GR	ALL
2	GR	ALL
3	GR	ALL
4	GR	ALL
5	GR	ALL
6	GR	ALL
7	GY	ALL
8	GY	ALL
9	GY	ALL
11	B	ALL

Cav	Col	CCT
12	B	1
13	B	ALL
14	B	ALL
15	GW	ALL
16	GW	ALL
17	GW	ALL
18	GW	ALL
19	GW	ALL
20	GW	ALL
