Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0390 › Male
ConnectorsMale
Chassis harness to main harness

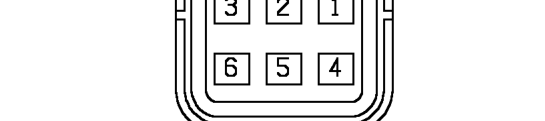

Male
GREEN

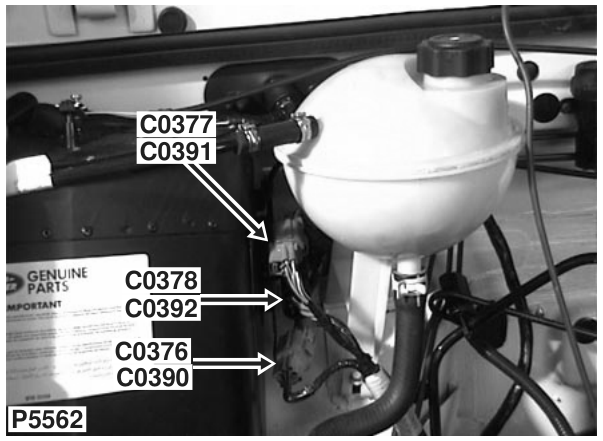

Rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | RO | ALL |
| 2 | RB | ALL |
| 3 | RY | ALL |
| 4 | GR | ALL |
| 5 | GW | ALL |
| 6 | GP | ALL |
