Male
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0391 › Male

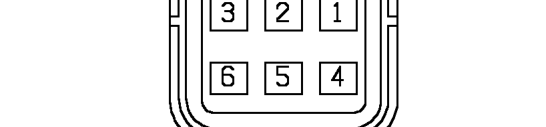

ConnectorsMale
Chassis harness to main harness
Male
GREY

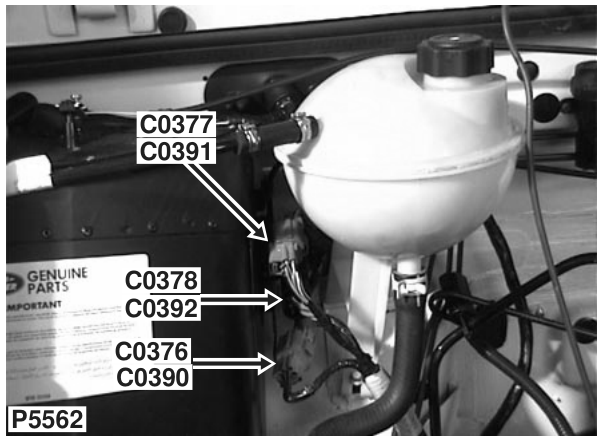

Rear of engine compartment
| Cav | Col | CCT |
|---|---|---|
| 1 | GN | ALL |
| 2 | WB | ALL |
| 3 | WG | ALL |
| 4 | NLG | ALL |
| 5 | RLG | ALL |
| 6 | OG | 21 |
