Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0488 › Female
ConnectorsFemale

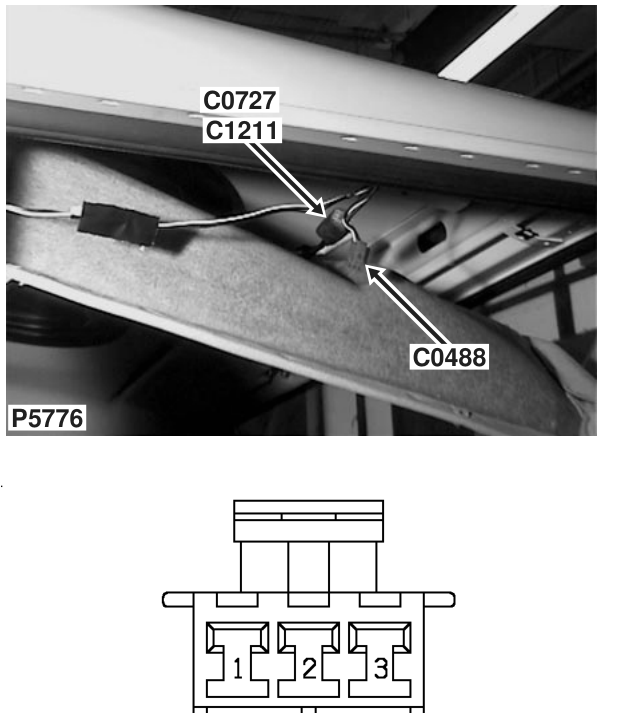

Main harness to interior lamp harness
Female
RED
Headlining - Front RH side
| Cav | Col | CCT |
|---|---|---|
| 1 | WB | 17 |
| 1 | WB | 16 |
| 2 | BN | 17 |
| 2 | BN | 16 |
| 3 | B | ALL |
