Socket - Auxilliary - Trailer
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0499 › Socket - Auxilliary - Trailer
ConnectorsSocket - Auxilliary - Trailer
Socket - Auxilliary - Trailer

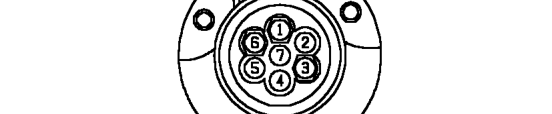

Female
BLACK

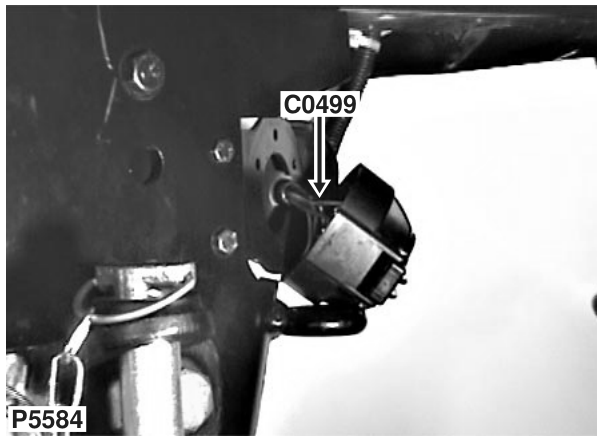

Behind centre of rear bumper
| Cav | Col | CCT |
|---|---|---|
| 1 | GR | ALL |
| 2 | RY | ALL |
| 3 | B | ALL |
| 4 | GW | ALL |
| 5 | RO | ALL |
| 6 | GP | ALL |
| 7 | RB | ALL |
