Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0506 › Female
ConnectorsFemale
ECU - ABS

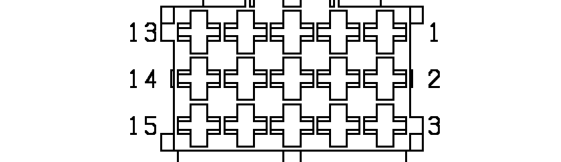

Female
BLACK

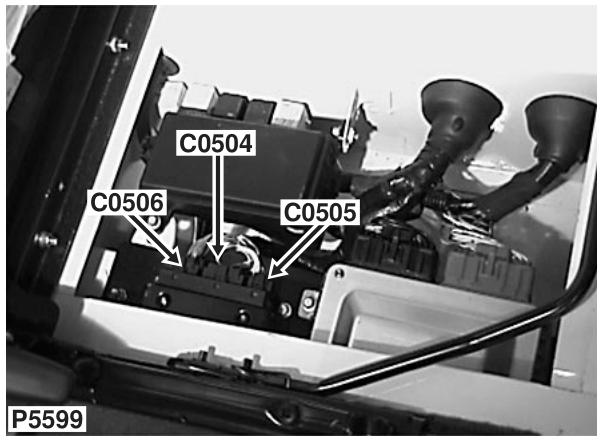

Beneath RH seat
| Cav | Col | CCT |
|---|---|---|
| 1 | SW | ALL |
| 2 | SR | ALL |
| 3 | B | ALL |
| 4 | SG | ALL |
| 5 | SU | ALL |
| 6 | RB | ALL |
| 7 | SY | ALL |
| 8 | SN | ALL |
| 10 | SP | ALL |
| 11 | SK | ALL |
| 15 | WO | 12 |
