Pump - Return - ABS
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0507 › Pump - Return - ABS
ConnectorsPump - Return - ABS
Pump - Return - ABS

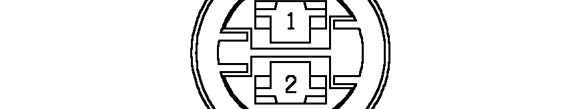

Female
NATURAL

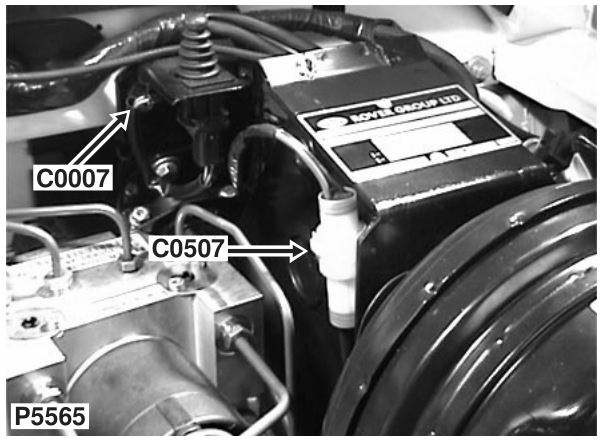

Adjacent pedal box
| Cav | Col | CCT |
|---|---|---|
| 1 | NR | ALL |
| 2 | B | ALL |
