Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0549 › Female
ConnectorsFemale

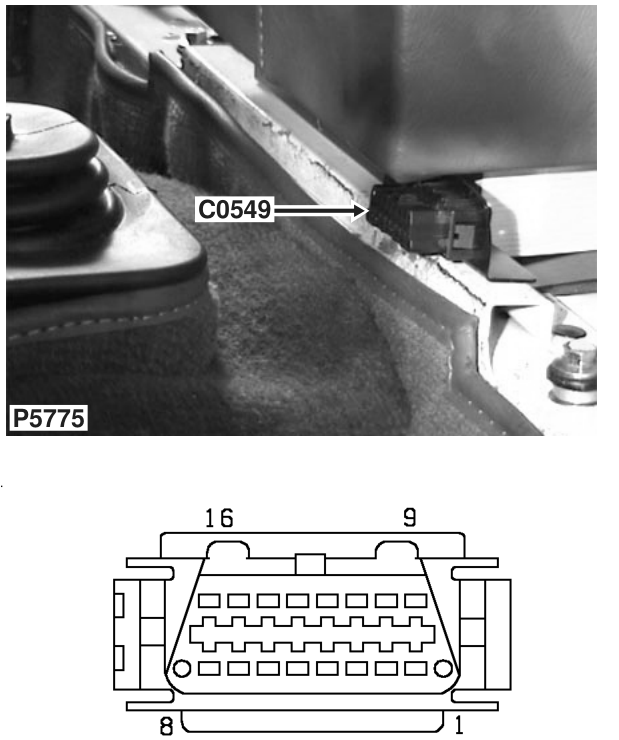

Diagnostic socket
Female
BLACK
Behind front of centre console
| Cav | Col | CCT |
|---|---|---|
| 4 | B | 27 |
| 5 | B | 27 |
| 7 | K | 21 |
| 8 | OLG | 17 |
| 8 | OLG | 16 |
| 16 | P | 27 |
