Header - Earth
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0550 › Header - Earth
ConnectorsHeader - Earth
Header - Earth
Female
LIGHT GREY

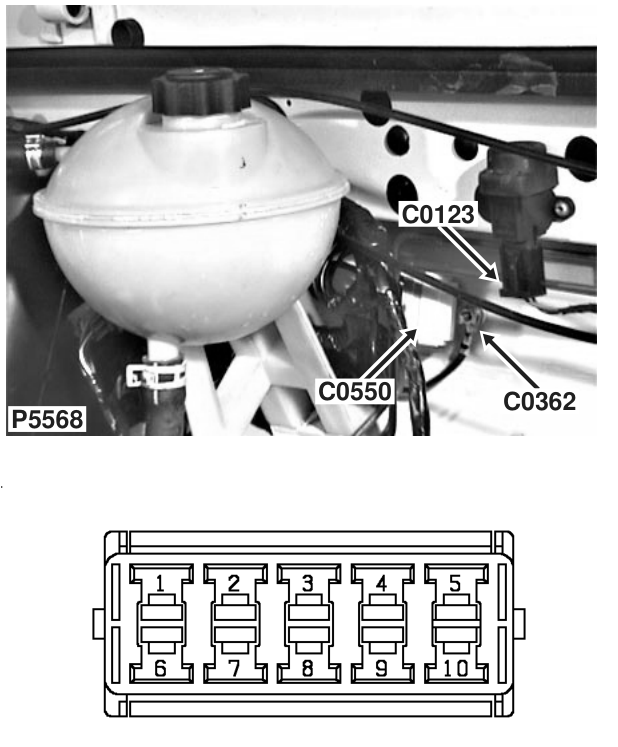

Top of bulkhead - centre
| Cav | Col | CCT |
|---|---|---|
| 1 | B | ALL |
| 2 | B | ALL |
| 3 | B | ALL |
| 4 | B | ALL |
| 5 | B | ALL |
| 6 | B | ALL |
| 7 | B | ALL |
| 8 | B | ALL |
| 9 | B | ALL |
| 10 | B | 12 |
