Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0580 › Female
ConnectorsFemale

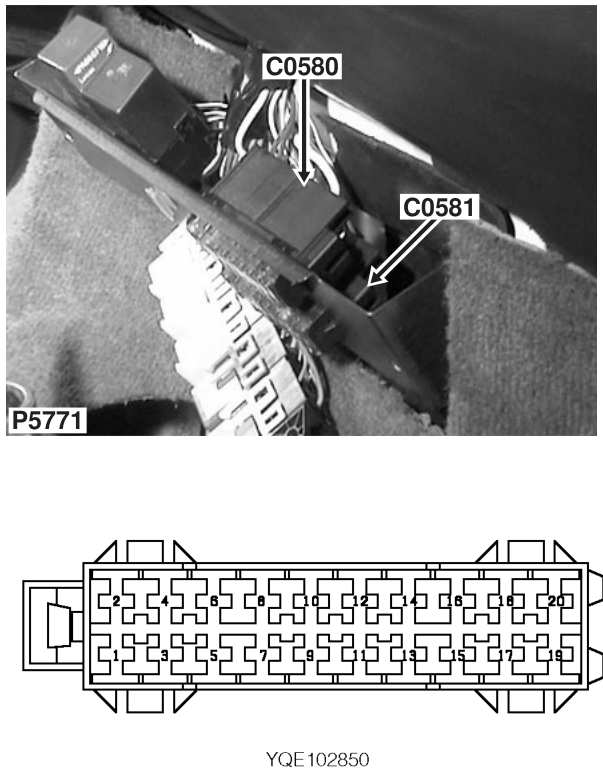

Fuse box - Passenger compartment
Female
BLACK
Beneath centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | W | ALL |
| 2 | WG | 15 |
| 4 | WG | ALL |
| 6 | WG | ALL |
| 8 | GO | 12 |
| 9 | W | ALL |
| 10 | WG | ALL |
| Cav | Col | CCT |
|---|---|---|
| 12 | GY | ALL |
| 14 | WG | ALL |
| 15 | NW | ALL |
| 16 | P | 27 |
| 17 | NK | 1 |
| 18 | NP | 1 |
| 20 | NS | 1 |
