Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0581 › Female
ConnectorsFemale

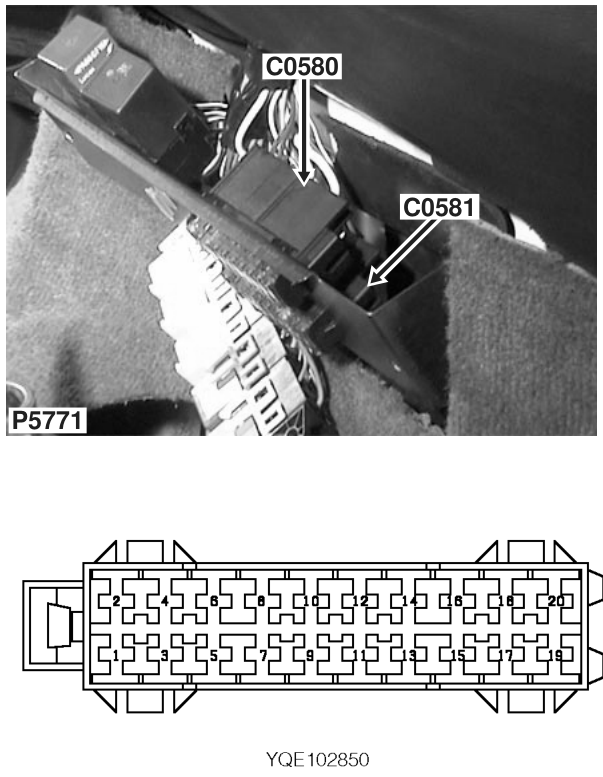

Fuse box - Passenger compartment
Female
BLACK
Beneath centre console
| Cav | Col | CCT |
|---|---|---|
| 1 | R | ALL |
| 2 | RB | ALL |
| 4 | RO | ALL |
| 5 | WO | ALL |
| 6 | PG | ALL |
| 8 | WO | ALL |
| 9 | UR | ALL |
| 10 | UB | ALL |
| Cav | Col | CCT |
|---|---|---|
| 12 | UK | ALL |
| 13 | UW | ALL |
| 14 | UO | ALL |
| 16 | US | ALL |
| 17 | U | ALL |
| 18 | UP | ALL |
| 19 | PB | 15 |
| 20 | OR | 15 |
