Switch - Transmision - High-Low
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0685 › Switch - Transmision - High-Low

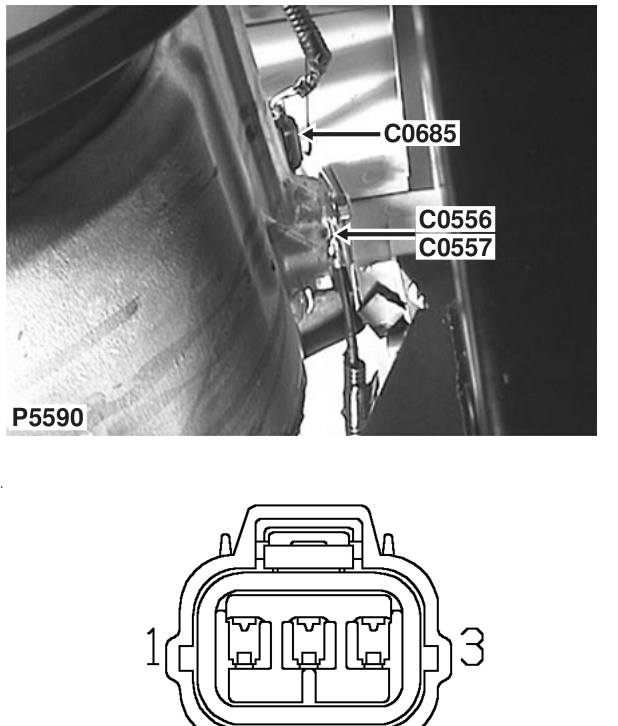

ConnectorsSwitch - Transmision - High-Low
Switch - Transmision - High-Low
Female
LIGHT GREY
LH side of transfer box
| Cav | Col | CCT |
|---|---|---|
| 1 | WB | ALL |
| 3 | B | ALL |
