Female
- Make
- Land Rover
- Model
- Defender Td5 Electrical Library
- Year
- 1999
- Section
- C0704 › Female
ConnectorsFemale

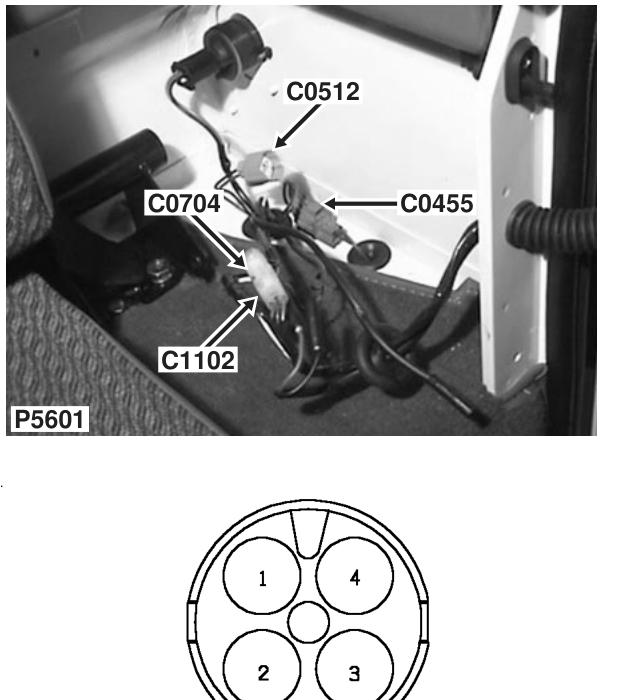

Chassis harness to tail door harness
Female
NATURAL
RH side of taildoor, behind trim panel
| Cav | Col | CCT |
|---|---|---|
| 1 | WG | ALL |
| 2 | NLG | ALL |
| 3 | RLG | ALL |
